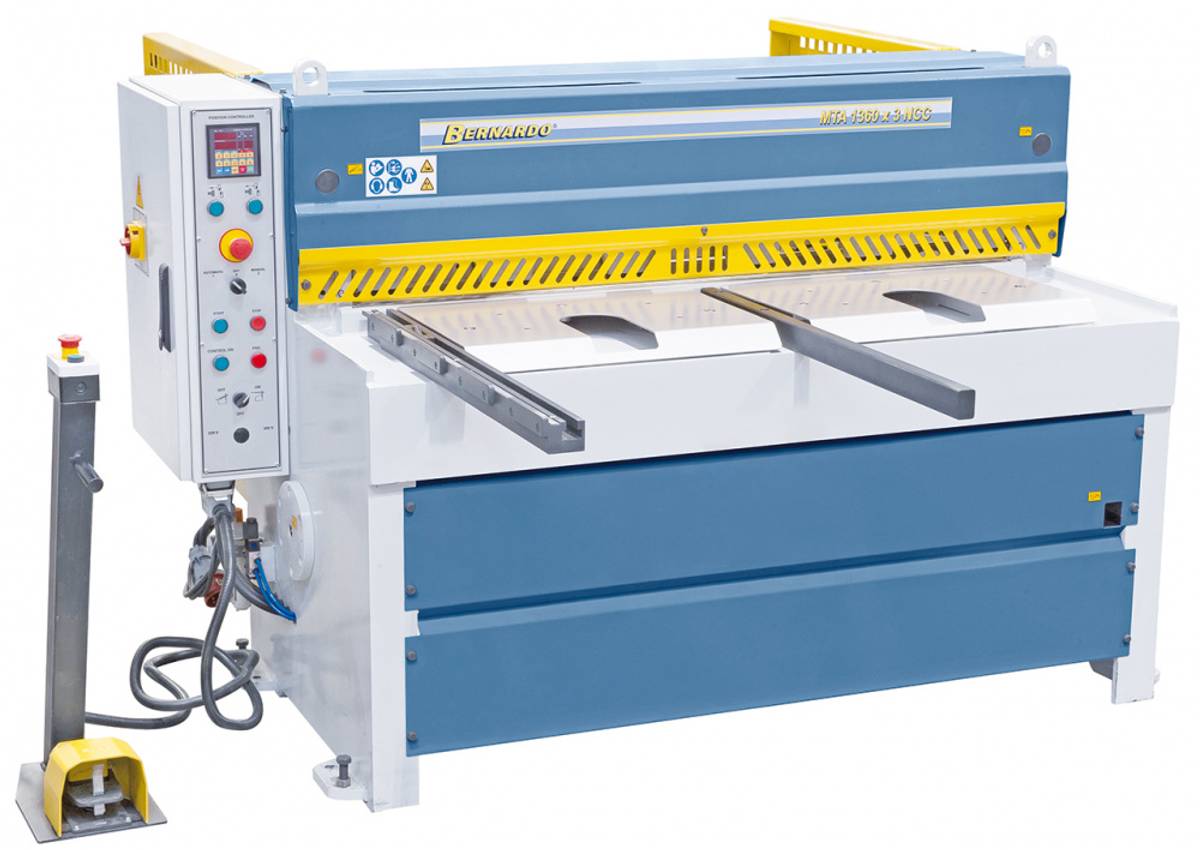

MTA 1360 x 3 NCC motorized shear Bernardo 06-1946XL
Properties
- Serially with pneumatic sheet support system, ideal for thin sheets
- Support arms on the front for easy handling of large plates
- Motorized backgauge, precise movement through ball screws
- Clearly structured control panel with integrated control
- Robust steel sheet construction for torsion-free working
- Working table with right-angled stop for exact adjustment of the workpiece
- High operator safety through protective plate and photocells on the back of the machine
- Double-edged top and bottom blades made of quality steel guarantee a clean and burr-free cutting
- Automatic downholder for fixing the sheet metal
Standard accessories
- Cutting counter
- Cutting line illumination
- Motorized NC-backgauge
- Front sheet metal support
- Table surface with integrated rolls
- Lateral stop ruler
- Protective plate with photocells
- NC-control BRL 401.2
- Pneumatic sheet support system
- Foot pedal with emergency stop
- Knives made of tool steel
Technical specifications
|
Cutting length |
1360 mm |
|
Sheet thickness max. * |
3 mm |
|
Cutting angle |
2° 30‘ |
|
Strokes / min |
31 |
|
Working height |
810 mm |
|
Backgauge |
0 - 750 mm |
|
Table width |
390 mm |
|
Motor power |
3,0 kW |
|
Width |
1930 mm |
|
Depth |
2100 mm |
|
Height |
1260 mm |
|
Weight approx. |
1240 kg |
|
* Material strength 400 N/mm² |
Bernardo er et selskap fra Østerrike som har drevet salg av maskiner siden 1979. De har et stort lager på 7000m2 med mye maskiner og utstyr på lager for rask levering. De har stort utvalg av dreiebenker, boremaskiner, freser, platemaskiner, sager og mye mer.! De har også stort delelager for rask levering.
LTS Maskin er Bernardo sin hovedleverandør i Norge og vi kan levere alt av deres produktregister.
Last ned katalog nedenfor:
Metallmaskiner:
Generell katalog: EN
Platemaskiner
Generell katalog: EN
Tremaskiner
Generell katalog: EN
Bernardo leveres standard med 3x400v om ikke annet er spesifisert.
