MBS 350 DG-VR PR
The model MBS 350 DG-VR PRO is a precise horizontal bandsaw for universal use. The features include the tiltable saw frame for double mitre cutting from -45° to +60°, the turnable vice as well as the stepless cutting speed.
Properties
- Professional bandsaw for locksmith´s shops, engine construction, tool shops, ...
- Torsion-free, strong spheroidal cast iron saw frame
- Stepless cutting speed allows for ideal adjustment to each workpiece (20 - 80 m/min)

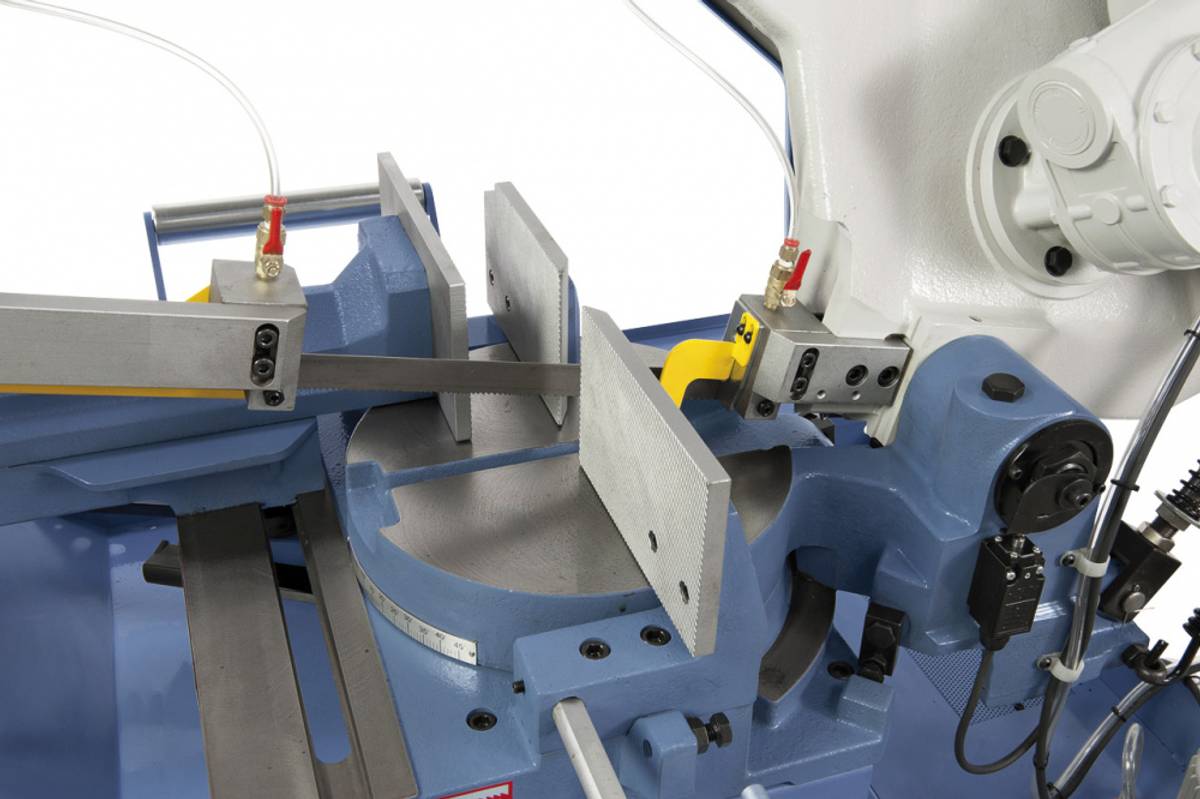

- The cutting groove in the rotary table moves in conjunction with the swivelling of the saw arm therefore the table suffers no damage when cutting angles
- Bandsaw blade guiding via combined roll-jaw guide system with carbide inserts
- Robust construction ensures smooth, vibration-free run
- Stepless lowering of saw frame via hydraulic cylinder
- Gear unit complete with hardened, polished worm shaft and bronze worm gear
- Robust cast iron vice with material fence, ideal for serial section
- Automatic shut-down at cutting end
- For mitre cutting the saw frame tilts 45° to the left and 60° to the right
Technical specification
|
Cutting capacity round / square 90° |
270 mm / 260 x 260 mm |
|
Cutting capacity flat 90° |
350 x 240 mm |
|
Cutting capacity round / square 45° R |
230 mm / 210 x 210 mm |
|
Cutting capacity flat 45° R |
230 x 150 mm |
|
Cutting capacity round / square 45° L |
200 mm / 170 x 170 mm |
|
Cutting capacity flat 45° L |
200 x 140 mm |
|
Cutting capacity round / square 60° R |
140 mm / 140 x 140 mm |
|
Working height |
975 mm |
|
Bandsaw blade dimensions |
2925 x 27 x 0,9 mm |
|
Cutting speeds |
20 - 80 m/min |
|
Coolant pump S1 100% |
100 W |
|
Motor power output S1 100% |
1,9 kW |
|
Motor power input S6 40% |
2,8 kW |
|
Voltage |
400 V |
|
Machine dimensions (L x D x H) |
2000 x 1300 x 2000 mm |
|
Weight approx. |
550 kg |
Standard accessories
- Bandsaw blade
- Material fence
- Stand
- Manometer for blade tension
- Bandsaw blade guiding with carbide inserts
- Quick clamping vice
- Coolant device
- Hydraulic cylinder
- Motor protective switch
- Automatic shut-down
