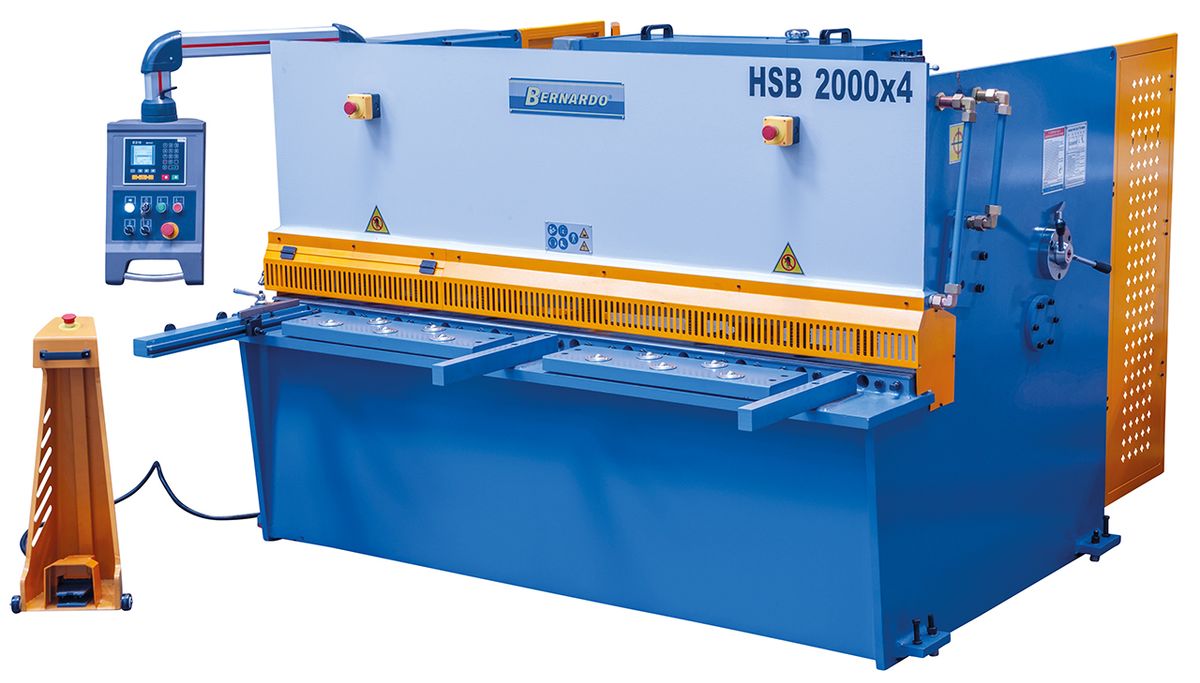

HSB 2000x4 Hydraulisk platesaks Bernardo 06-1922XL6
Product Properties

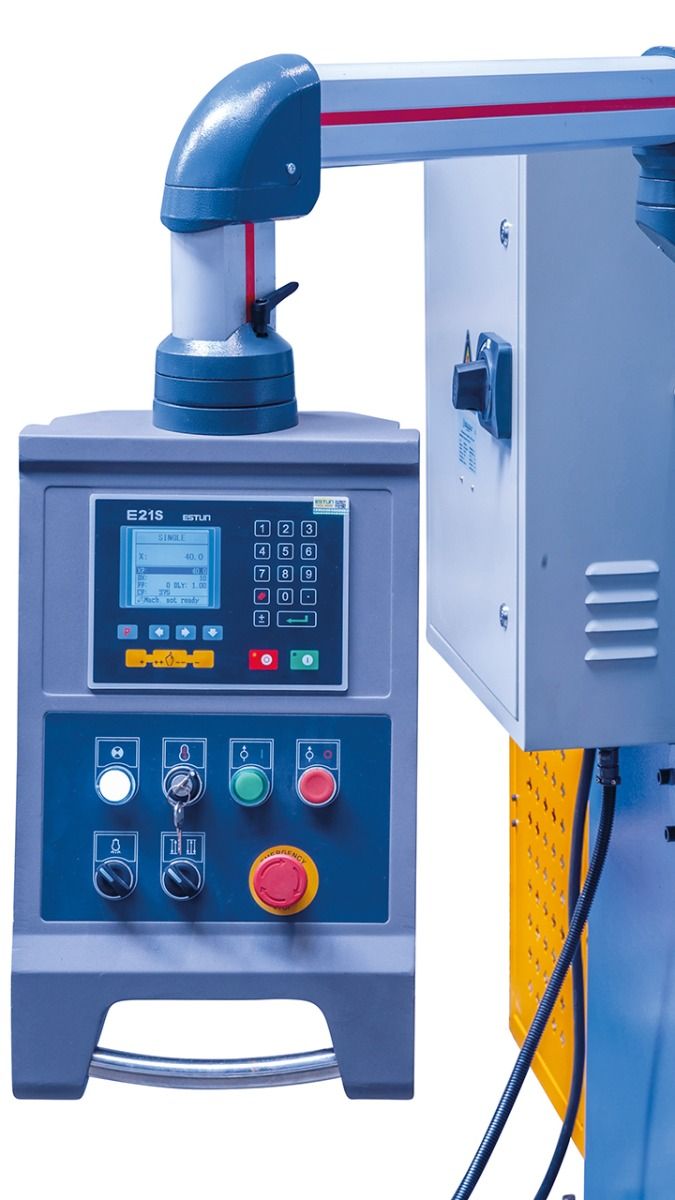

- Clearly structured control panel with integrated control (cutting counter, cutting width,....)

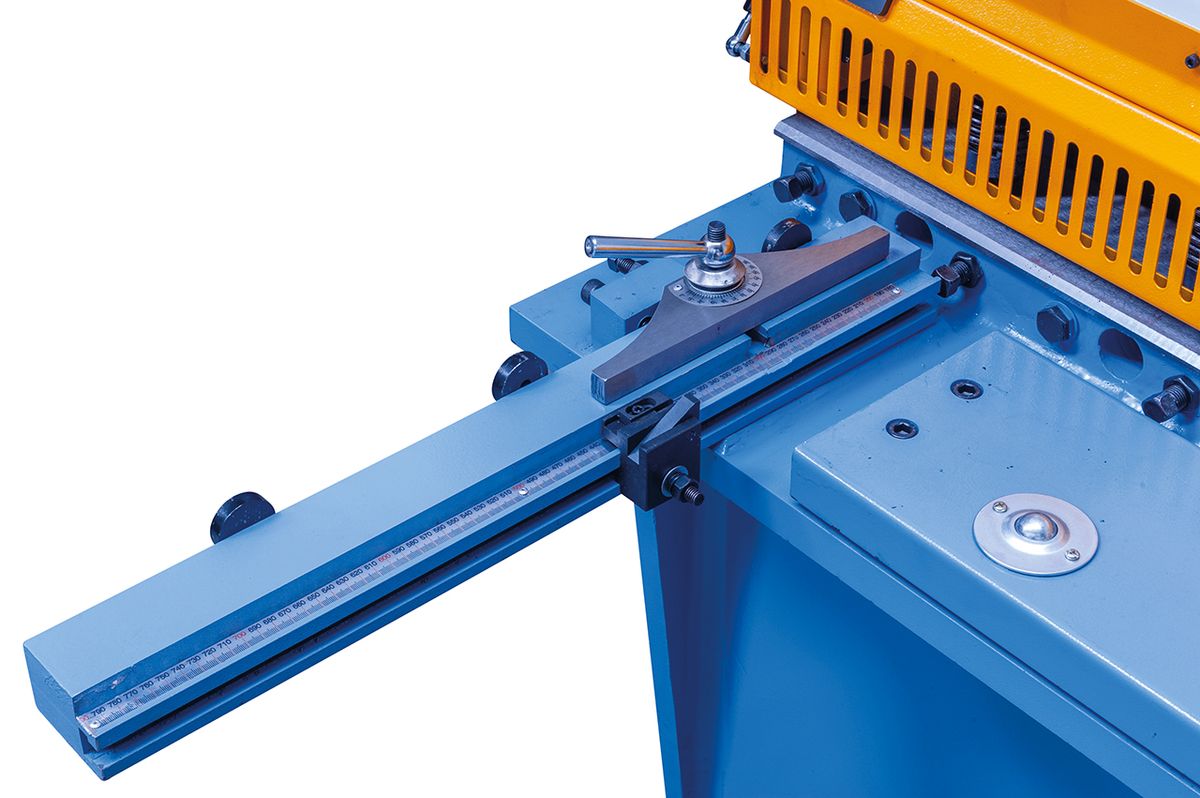

- Support table with right-angled stop with scale, tilting cam and angle shearing device

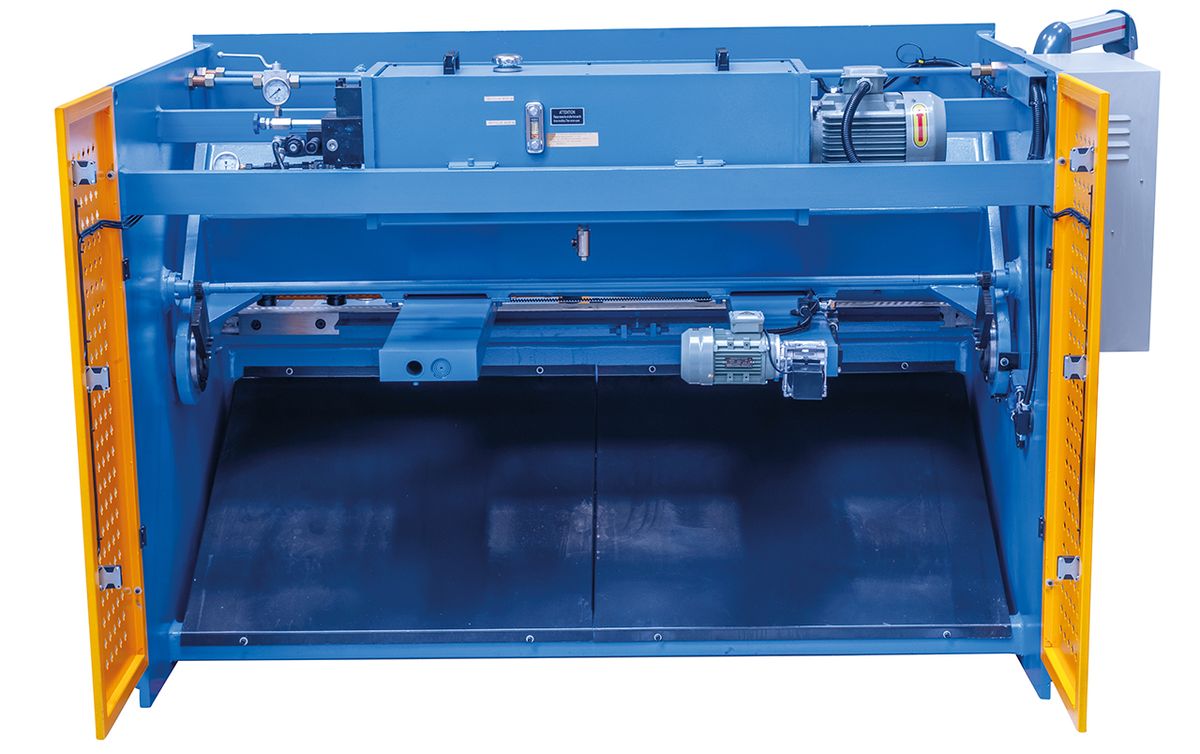

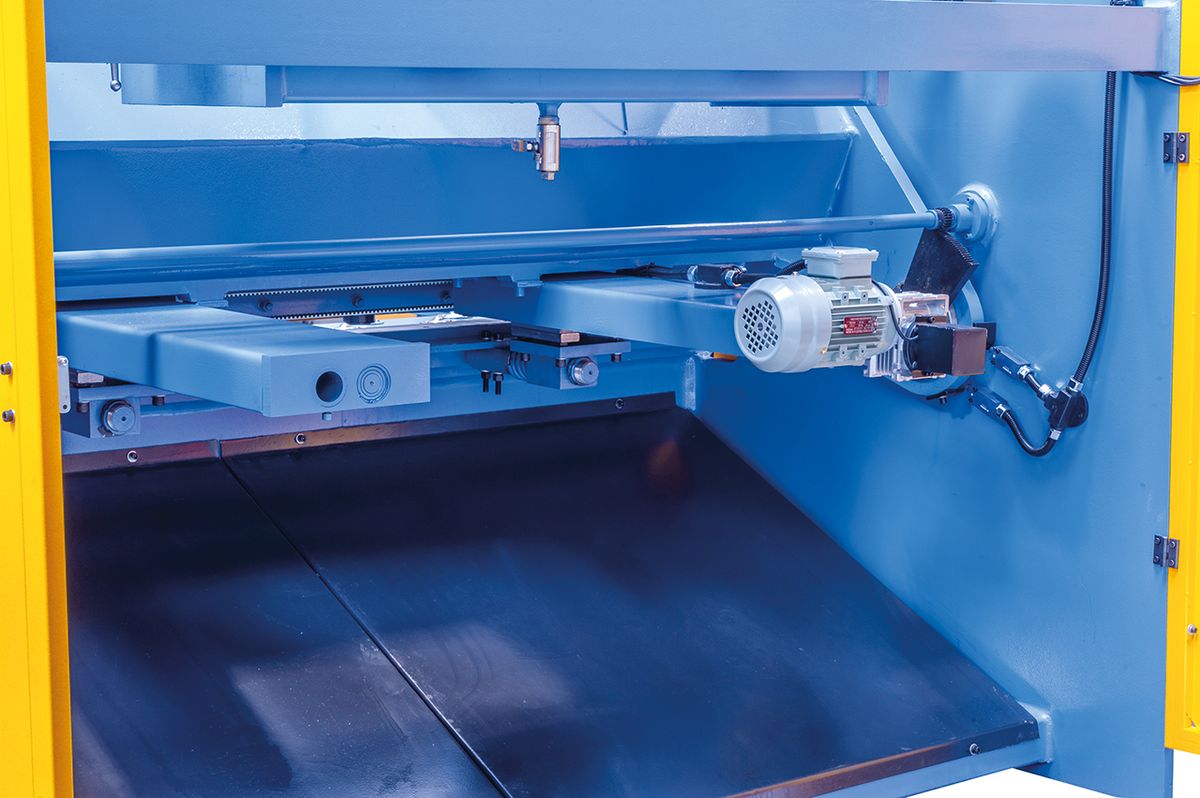

- Motorized backgauge, precise movement through ball screws
- Precise work thanks to integrated cutting line illumination with silhouette

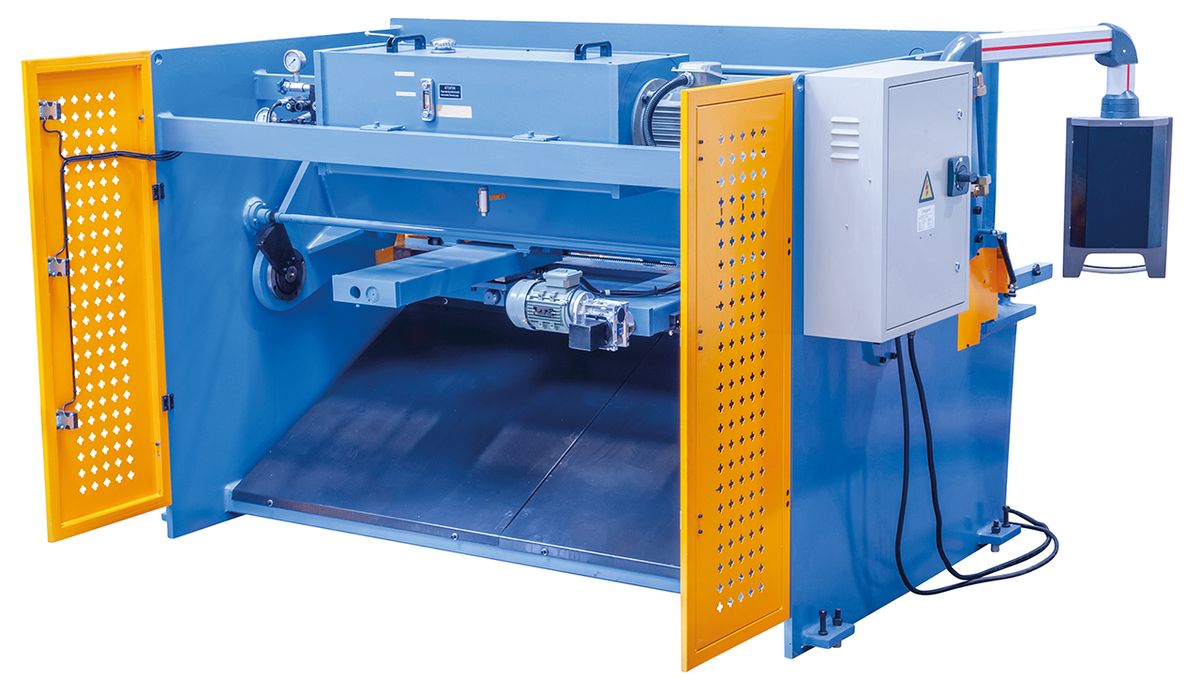

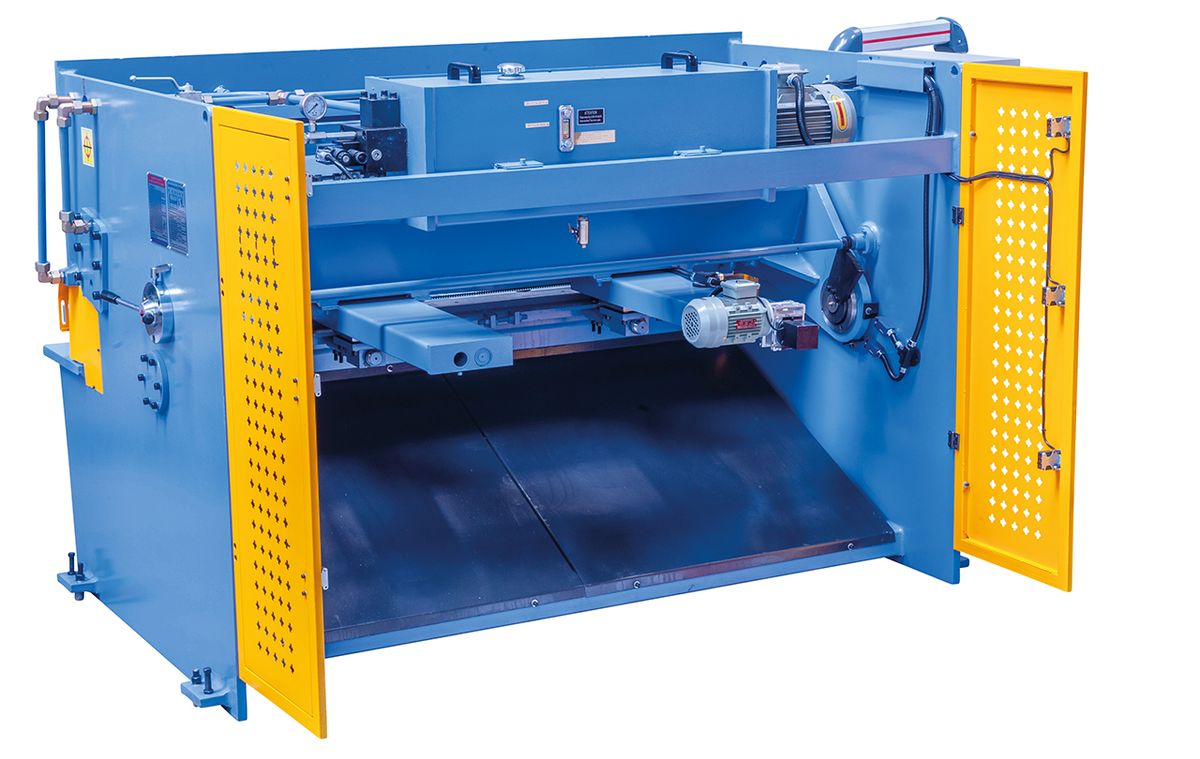

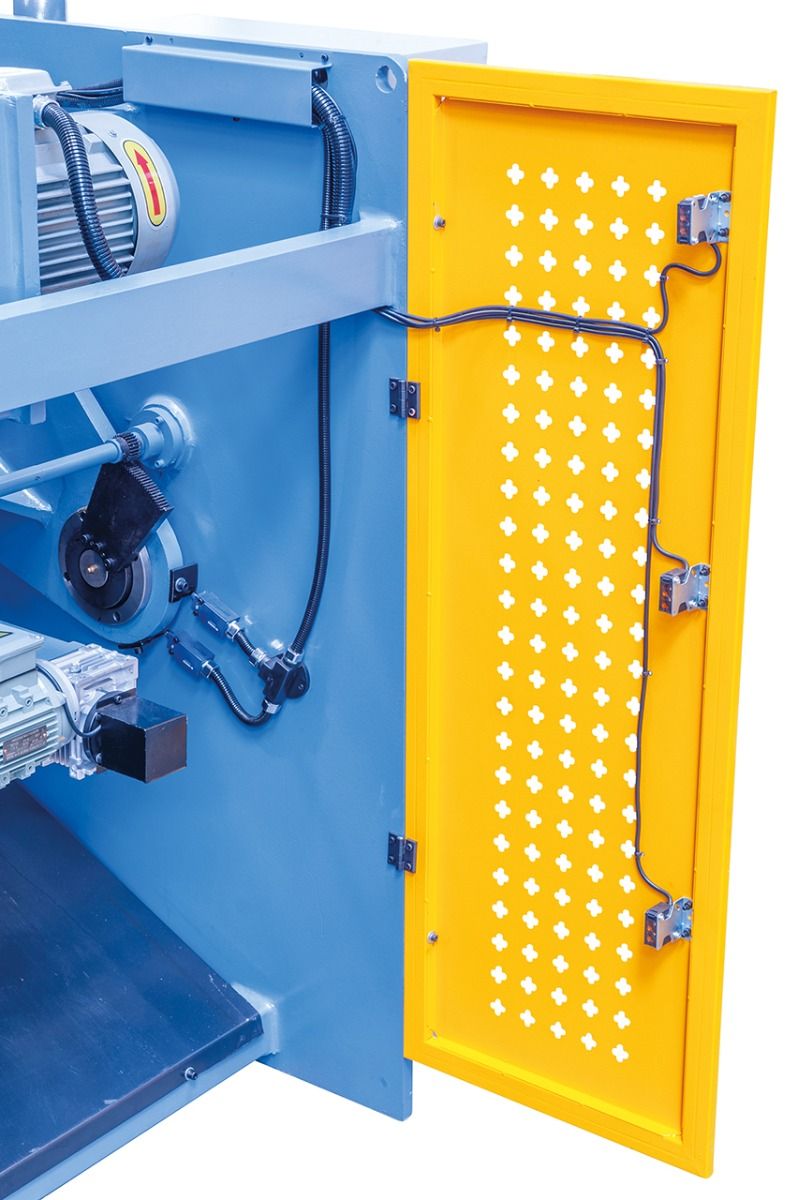

- High operator safety through protective plate and photocells on the back of the machine
- For efficient cutting of various materials, such as sheet steel, brass, aluminum, copper, ...
- Cutting by foot pedal, hands remain free for optimal positioning of the sheet
- Support arms on the front for easy handling of large plates
- Table surface with integrated rolls, ideal for large workpieces
- Knife bar with low cutting angle ensures optimum cutting results
Product Specifications
|
Cutting length |
2000 mm |
|
Sheet thickness max. * |
4 mm |
|
Cutting angle |
1° 30‘ |
|
Motorized backgauge |
0 – 600 mm |
|
Strokes / min |
12 |
|
Quantity of downholder |
8 pcs. |
|
Table height |
760 mm |
|
Support arms |
3 pcs. |
|
Oil tank |
215 liter |
|
Motor power |
4,0 kW |
|
Length |
2700 mm |
|
Depth |
2600 mm |
|
Height |
1600 mm |
|
Weight approx. |
3015 kg |
* Material strength 400 N/mm²
Delivery Contents
- Cutting gap adjustment
- Cutting line illumination
- Motorized NC-backgauge
- Front sheet metal support
- Side stop
- Angle shearing device
- Protective plate with photocells
- NC-control E21S
- Foot pedal with emergency stop
- Knives made of tool steel
Bernardo er et selskap fra Østerrike som har drevet salg av maskiner siden 1979. De har et stort lager på 7000m2 med mye maskiner og utstyr på lager for rask levering. De har stort utvalg av dreiebenker, boremaskiner, freser, platemaskiner, sager og mye mer.! De har også stort delelager for rask levering.
LTS Maskin er Bernardo sin hovedleverandør i Norge og vi kan levere alt av deres produktregister.
Last ned katalog nedenfor:
Metallmaskiner:
Generell katalog: EN
Platemaskiner
Generell katalog: EN
Tremaskiner
Generell katalog: EN
Bernardo leveres standard med 3x400v om ikke annet er spesifisert.
Riktig maskin til hvert bruk (se etter merkene nedenfor):
Hobby
Max. 150 h / year
Average usage:
2 h / day or 25% duty cycle
Semi-Professional
Max. 300 h / year
Average usage:
3 h / day or 50% duty cycle
Professional
Max. 600 h / year
Average usage:
3 h / day or 90% duty cycle
Industry
Max. 1500 h / year
Average usage:
8 h / day or 90% duty cycle
