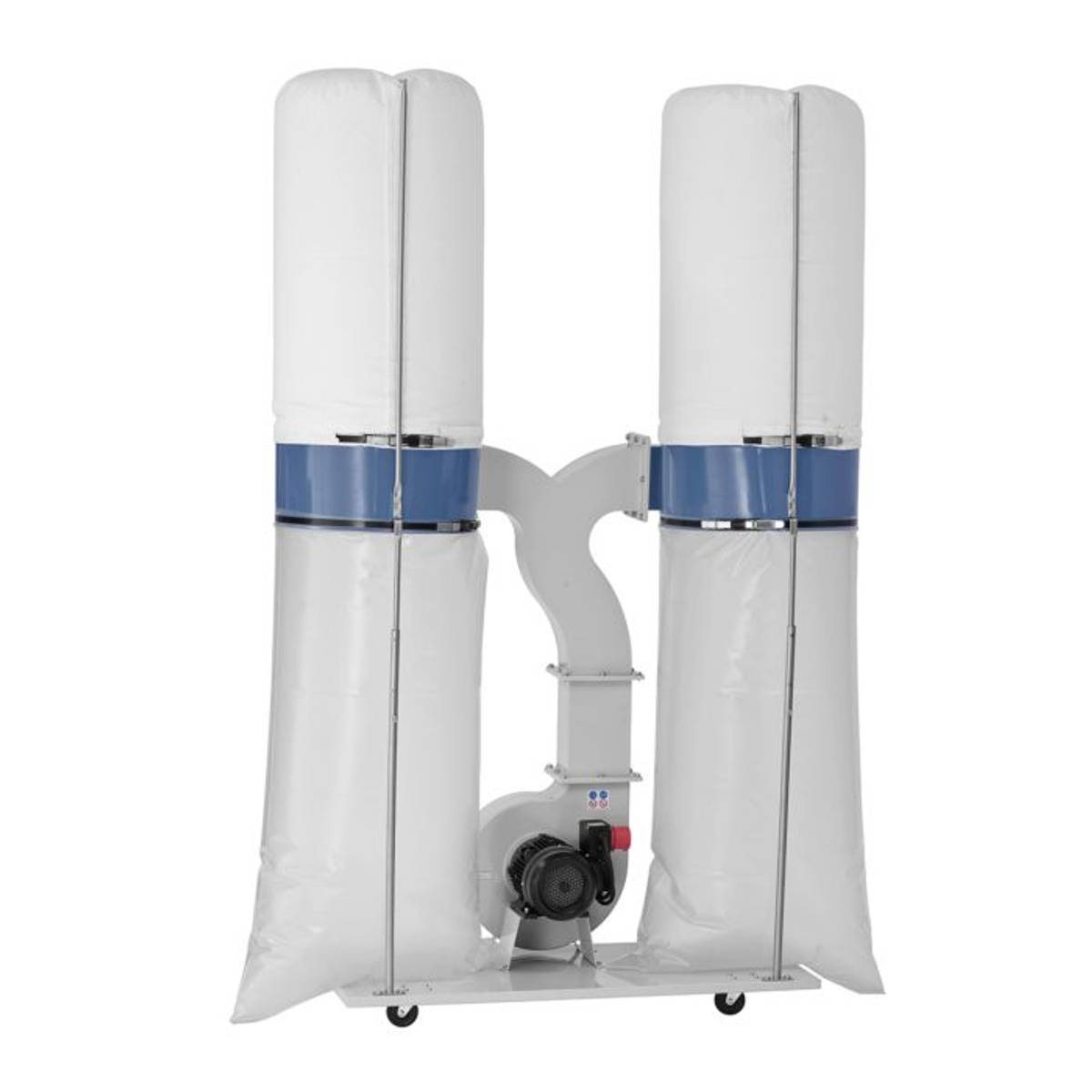

DC 500 E 400 V Bernardo 12-2066
The DC 500 E dust collector is the elite model of the DC series among amateurs. The powerful drive motor featuring overload protection, the amply dimensioned waste bag volume and the possibility to connect to three machines simultaneously allows this model to meet hobbyists' highest expectations.
Technical specifications
|
Capacity |
3900 m3/h |
|
Filter area |
2,9 m2 |
|
Low pressure max. |
1800 Pa |
|
Inlet diameter |
1 x 150 / 3 x 100 mm |
|
Waste bag volume |
2 x 300 l |
|
Idle speed |
2950 rpm |
|
Sound pressure |
89,4 dB |
|
Motor power output S1 100% |
2,2 kW (3,0 HP) |
|
Motor power input S6 40% |
3,0 kW (4,2 HP) |
|
Voltage |
400 V / 50 Hz |
|
Machine dimension (W x D x H) |
1430 x 730 x 2150 mm |
|
Weight approx. |
52 kg |
Properties
- Steel fan wheel restistent to suction of small pieces of wood
- Constant extraction force even during long operations
- Replaceable cartridge filter FP 2 or FB 3 increases extraction force significantly
- Connect to stationary or mobile wood working machines
- Connect to three machines at the same time

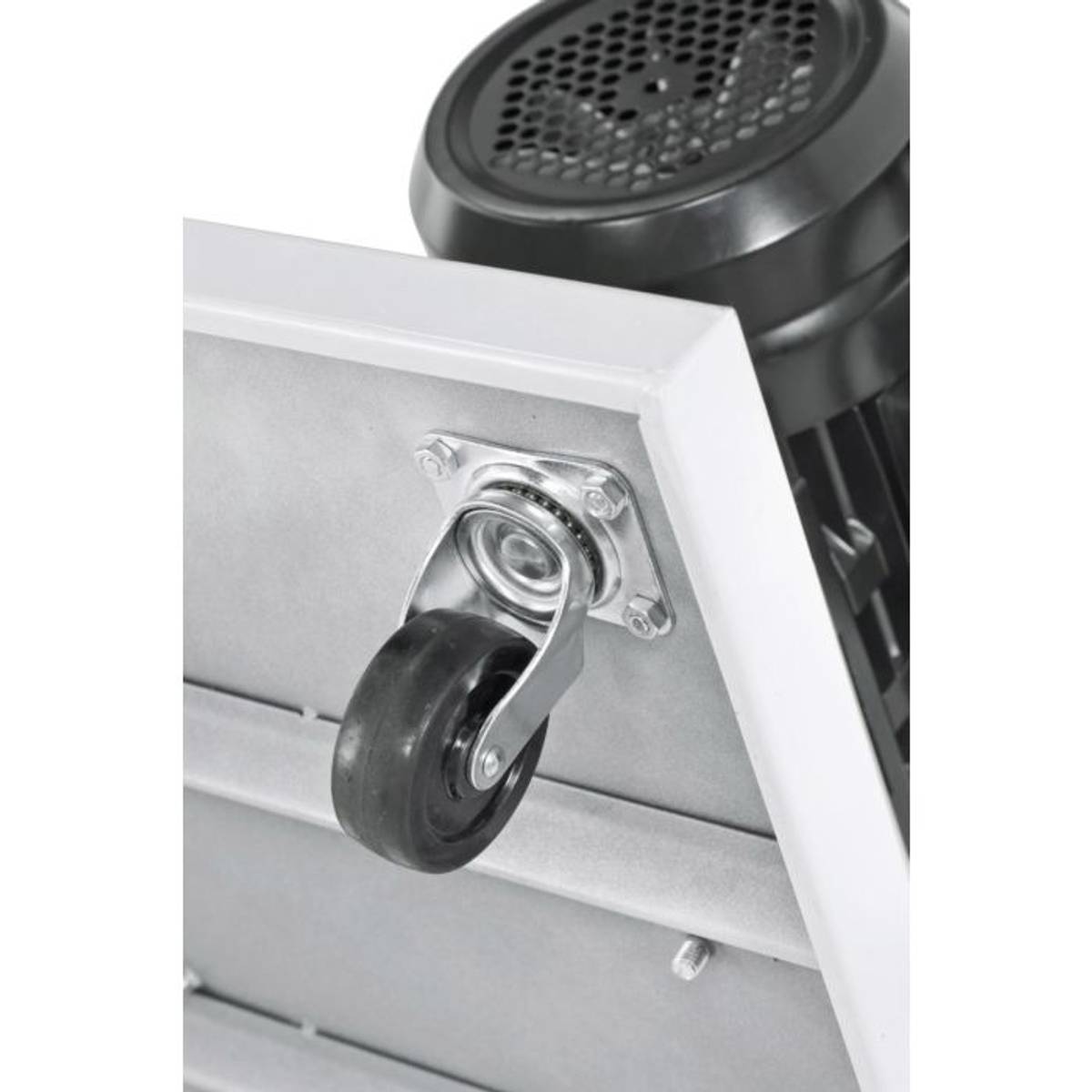

- Complete with carriage to allow for easy transport
Standard accessories
- Filter bags
- Waste bags
- Adapter 1 x 150 mm / 3 x 100 mm
- Carriage
https://www.bernardo.at/en/dc-500-e.html
Bernardo er et selskap fra Østerrike som har drevet salg av maskiner siden 1979. De har et stort lager på 7000m2 med mye maskiner og utstyr på lager for rask levering. De har stort utvalg av dreiebenker, boremaskiner, freser, platemaskiner, sager og mye mer.! De har også stort delelager for rask levering.
LTS Maskin er Bernardo sin hovedleverandør i Norge og vi kan levere alt av deres produktregister.
Last ned katalog nedenfor:
Metallmaskiner:
Generell katalog: EN
Platemaskiner
Generell katalog: EN
Tremaskiner
Generell katalog: EN
Bernardo leveres standard med 3x400v om ikke annet er spesifisert.
Riktig maskin til hvert bruk (se etter merkene nedenfor):
Hobby
Max. 150 h / year
Average usage:
2 h / day or 25% duty cycle
Semi-Professional
Max. 300 h / year
Average usage:
3 h / day or 50% duty cycle
Professional
Max. 600 h / year
Average usage:
3 h / day or 90% duty cycle
Industry
Max. 1500 h / year
Average usage:
8 h / day or 90% duty cycle
