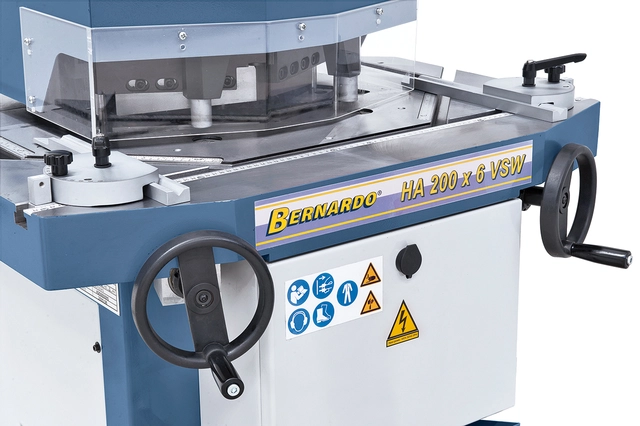

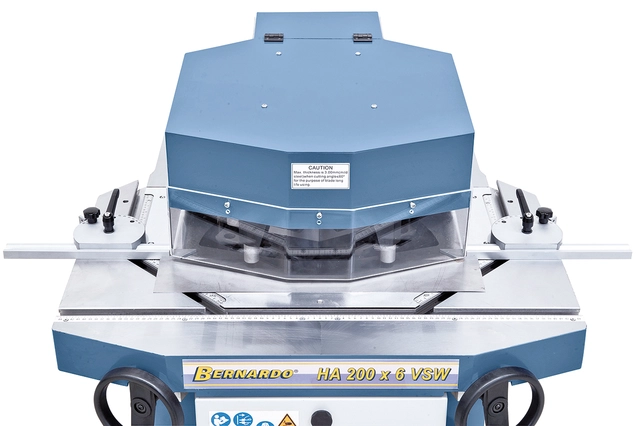

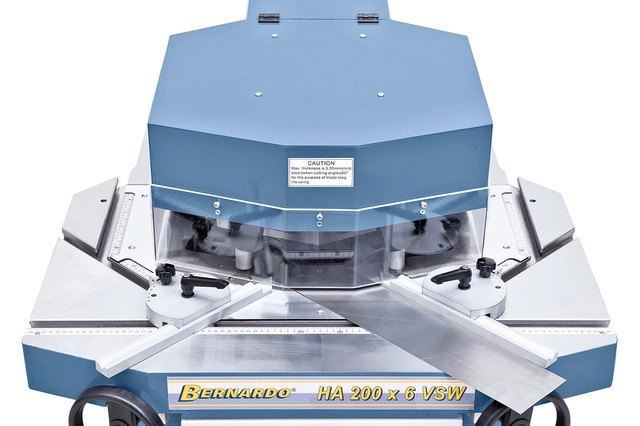

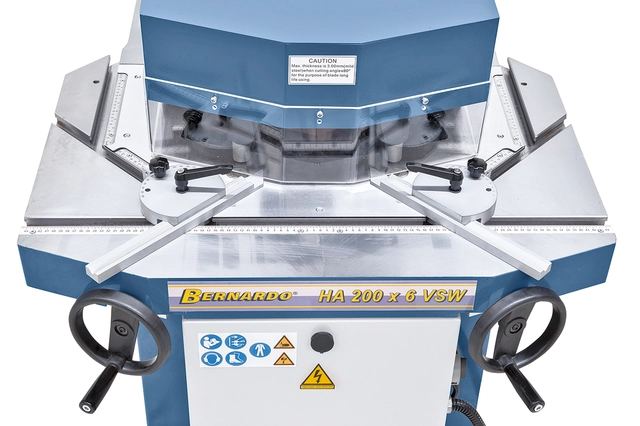

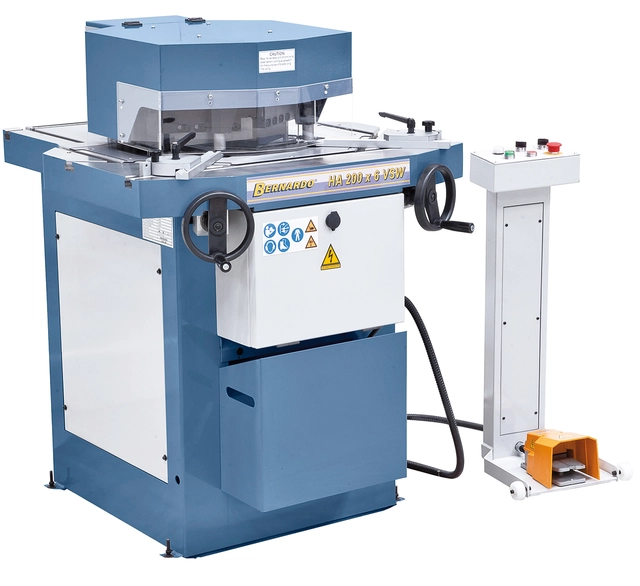

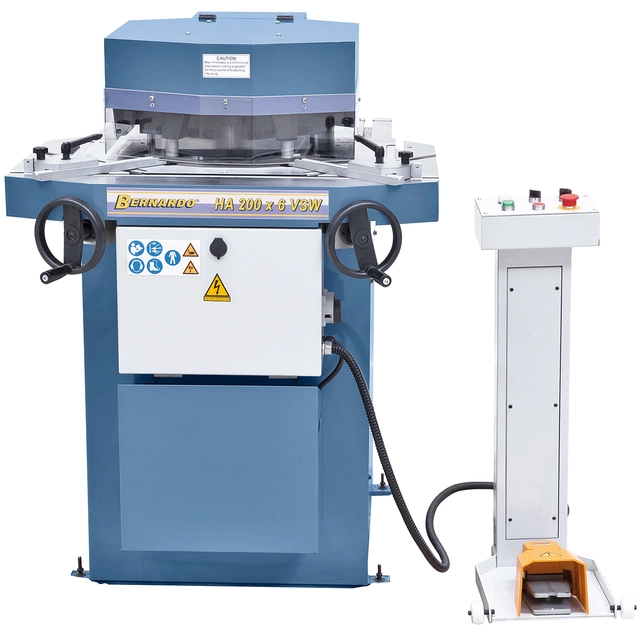

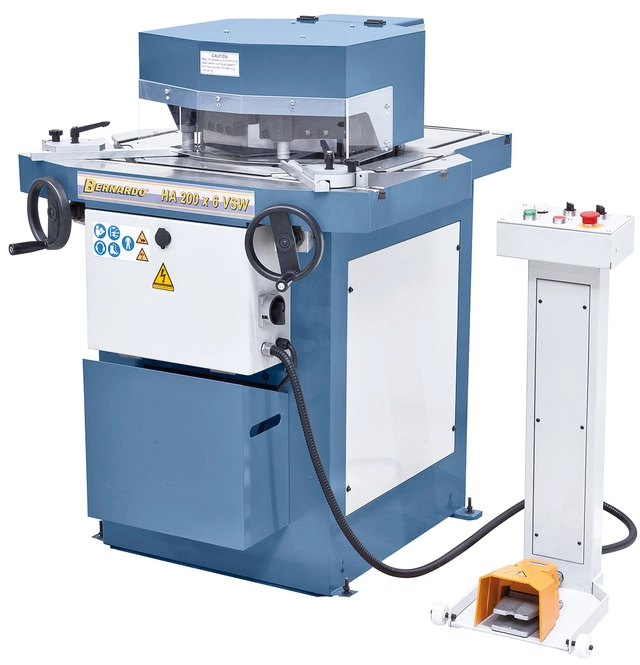

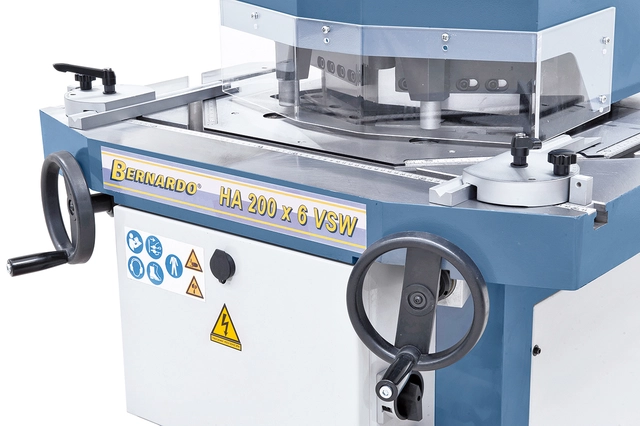

HA 200 x 6 VSW hydraulisk stansemaskin Bernardo 06-1888
Standard accessories
- 1 set cutting knives
- Round stamp with die Ø 12 mm
- 2 tiltable material fence
- Plexiglas protective cover
- Foot pedal with emergency stop
Technical specifications
|
Sheet thickness max. (400 N / mm2)
|
6,0 mm
|
|
Sheet thickness max. (600 N / mm2)
|
3,0 mm
|
|
Cutting length
|
200 x 200 mm
|
|
Cutting angle
|
30° - 140°
|
|
Strokes / min
|
24
|
|
Table size
|
900 x 990 mm
|
|
Table height
|
940 mm
|
|

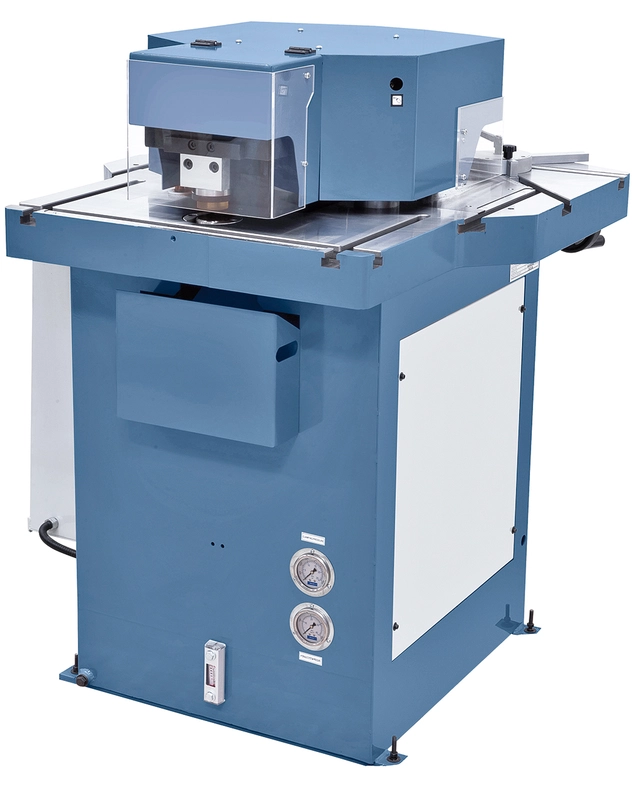

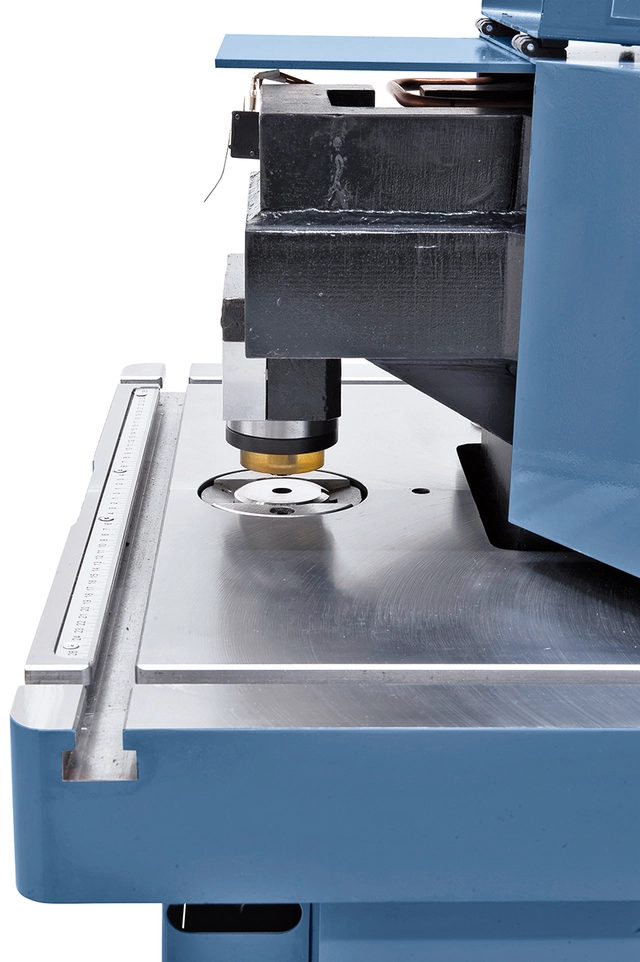

Punching unit
|
|
|
Hole diameter max.
|
35 mm
|
|
Material thickness
|
6,0 mm
|
|
Motor power
|
4,0 kW / 400 V
|
|
Width
|
900 mm
|
|
Depth
|
990 mm
|
|
Height
|
1200 mm
|
|
Weight approx.
|
1020 kg
|
Hjørnestanse, hjørneklipper, utklinker, Hjørnesnipser
