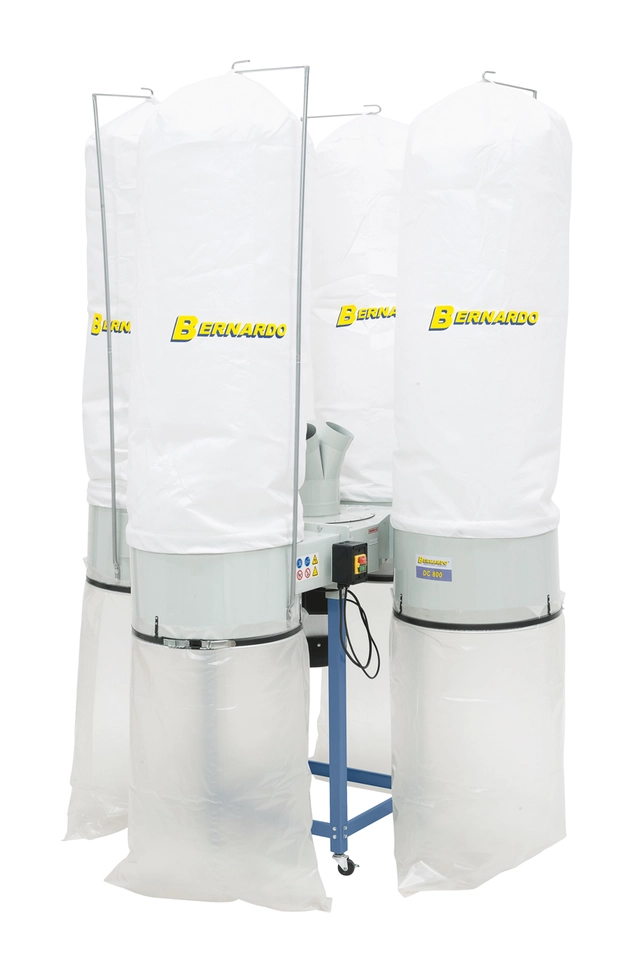

DC 800 Sponavsug 400 V Bernardo 12-2076
The DC 800 dust collector comes with significant advantages – economic operation, cost effectiveness and the chance to connect four machines simultaneously – making this model ideal for smaller workshops.
Technical specifications
|
Capacity
|
6800 m³/h
|
|
Filter area
|
8,0 m²
|
|
Low pressure max.
|
2340 Pa
|
|
Inlet diameter
|
1 x 180 mm
|
|
Inlet diameter with adapter
|
4 x 100 mm
|
|
Waste bag volume
|
840 l (4 x 210 l)
|
|
Idle speed
|
2800 rpm
|
|
Sound pressure
|
80 dB
|
|
Motor power output S1 100%
|
5,2 kW (7,0 HP)
|
|
Motor power input S6 40%
|
7,0 kW (9,5 HP)
|
|
Voltage
|
400 V / 50 Hz
|
|
Machine dimension (W x D x H)
|
1300 x 1300 x 2340 mm
|
|
Weight approx.
|
102 kg
|
Properties

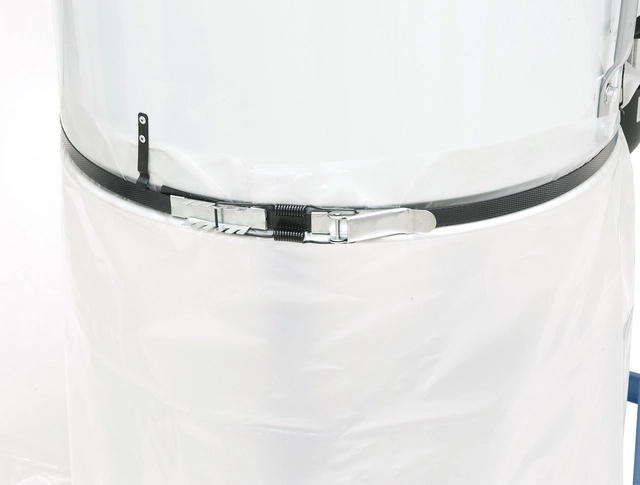

- Strap with quick clamping allows for straightforward change of dust bags
- Constant extraction force even during long operations
- Increases performance of wood working machines significantly
- Suitable for a variety of materials, such as wood, plastics, polystyrene etc.
- Connect to four machines at the same time
- Replaceable cartridge filter FP 2 or FP 3 increases extraction force significantly
Standard accessories
- 4 filter bags
- Waste bags
- Adapter 1 x 180 mm / 4 x 100 mm
