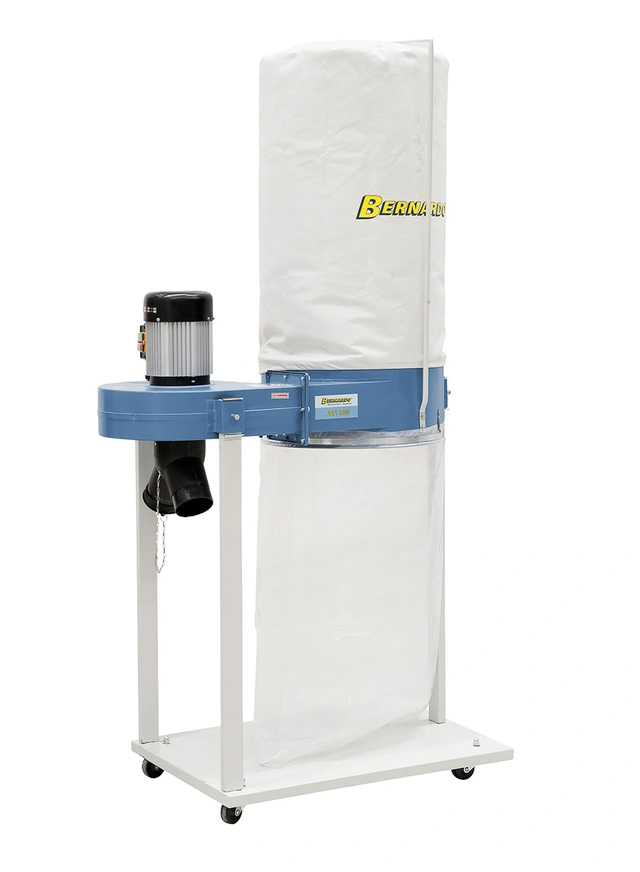

ASA 3500 Sponavsug 400 V Bernardo 12-2080
The ASA 3500 powerful, transportable dust collector improves the performance of your wood working machines significantly and it will keep your workspace free from chips and sawdust.
Technical specifications
|
Capacity
|
2530 m³/h
|
|
Filter area
|
1,45 m²
|
|
Low pressure max.
|
1800 Pa
|
|
Inlet diameter
|
1 x 130 mm / 2 x 100 mm
|
|
Waste sack volume
|
165 l
|
|
Idle speed
|
2950 rpm
|
|
Sound pressure
|
87 dB
|
|
Motor power output S1 100%
|
1,5 kW (2,0 HP)
|
|
Motor power input S6 40%
|
2,1 kW (2,8 HP)
|
|
Voltage
|
400 V / 50 Hz
|
|
Machine dimension (W x D x H)
|
1000 x 600 x 1950 mm
|
|
Weight approx.
|
37 kg
|
Properties
- Solid steel plate construction reduces static charge - compared to plastic housing
- Connect to fixed or mobile wood working machines
- Constant extraction force even during long operations
- Steel fan wheel resistant to suction of small pieces of wood
- Includes adapter to attach two machines simultanously
- Strap with quick clamping guarantees straightforward bag changes
Standard accessories
- Filter bag
- Waste bag
- Y-adapter 1 x 130 mm / 2 x 100 mm
- Carriage
