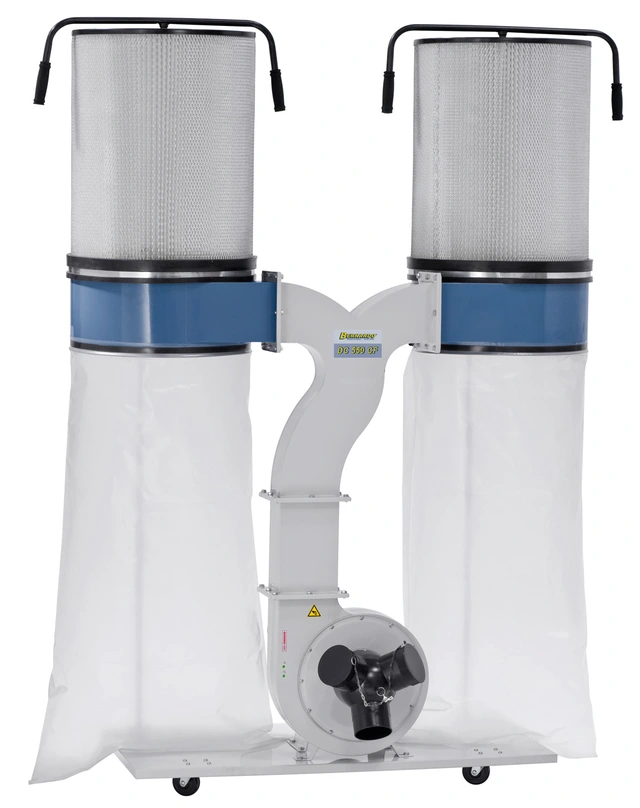

DC 550 CF Sponavsug med patronfilter 400 V Bernardo 12-2100
The DC 550 CF requires little space in relation to its performance because of two cartridge filter (larger filter area, fine dust filtration etc.)
Technical specifications
|
Capacity max.
|
4400 m³/h
|
|
Filter area
|
8,0 m2
|
|
Low pressure max.
|
1800 Pa
|
|
Inlet diameter
|
1x 150 / 3 x 100 mm
|
|
Waste bag volume
|
2 x 300 l
|
|
Idle speed
|
2950 rpm
|
|
Sound pressure
|
89,4 dB
|
|

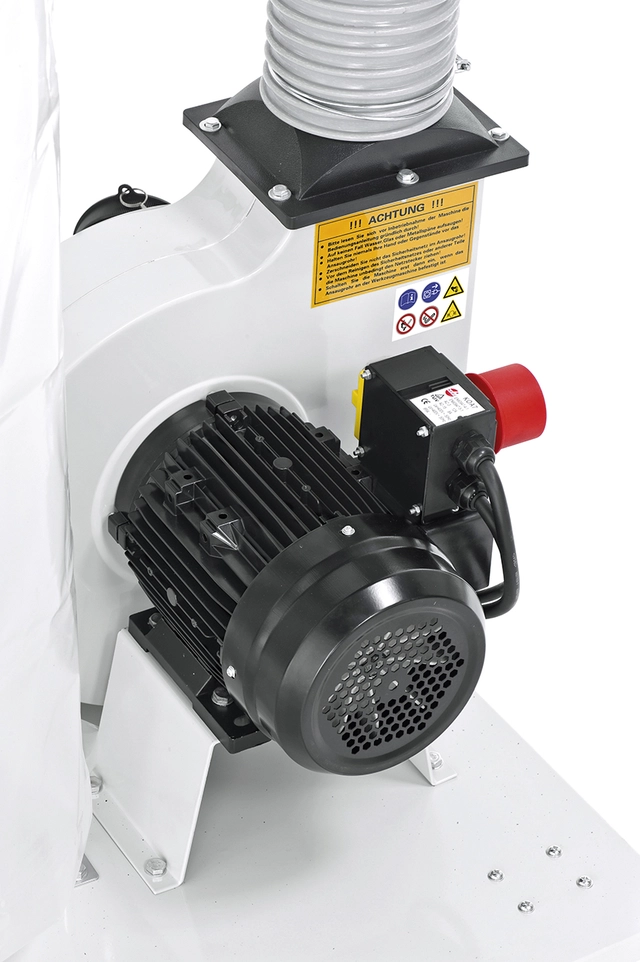

Motor power output S1 100%
|
2,2 kW (3,0 HP)
|
|
Motor power input S6 40%
|
3,0 kW (4,2 HP)
|
|
Voltage
|
400 V / 50 Hz
|
|
Machine dimension (W x D x H)
|
1480 x 730 x 2030 mm
|
|
Weight approx.
|
67 kg
|
Properties
- Cartridge filter come standard
- Requires minimum space but features top performance
- Ideal tool for extraction of sawdust, milling chips and wood shavings
- Increases performance of wood working machines significantly
- Strap with quick clamping allows for straightforward change of dustbag
- Solid steel sheet construction reduces static charge contrary to plastic housings
Standard accessories

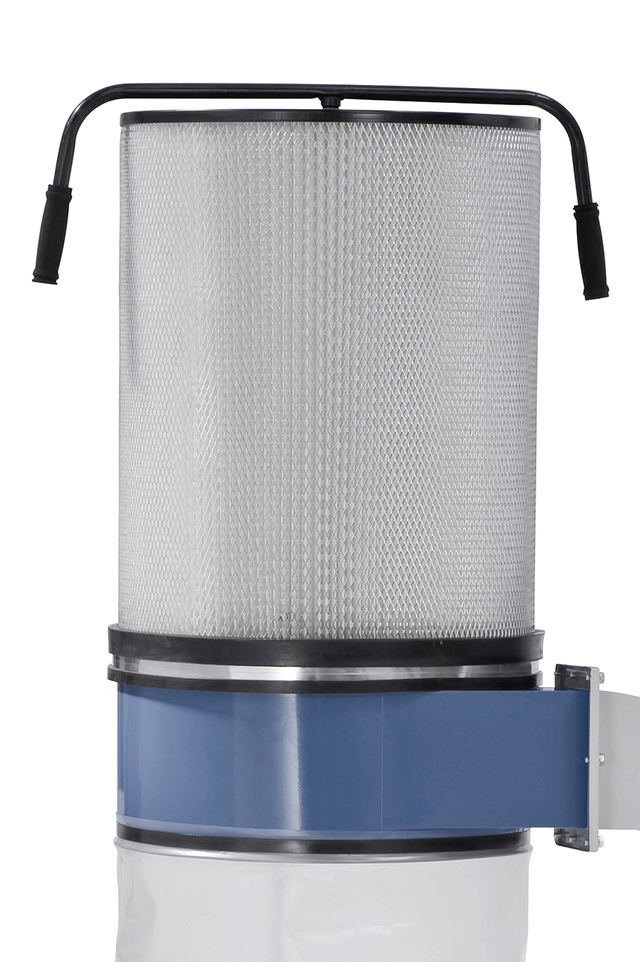

- Cartridge filters FP 2
- Waste bags

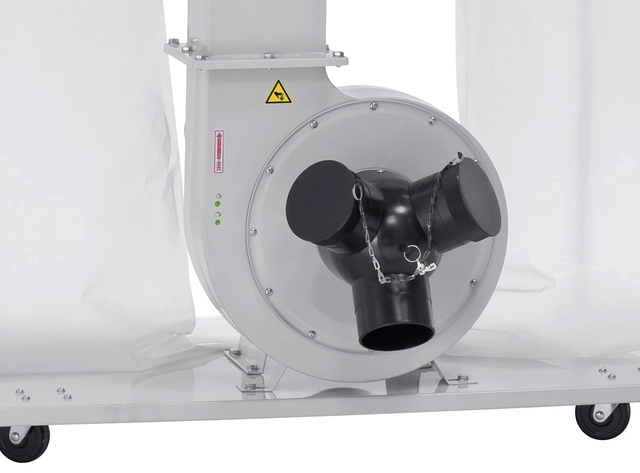

- Adapter 1 x 150 mm / 3 x 100 mm

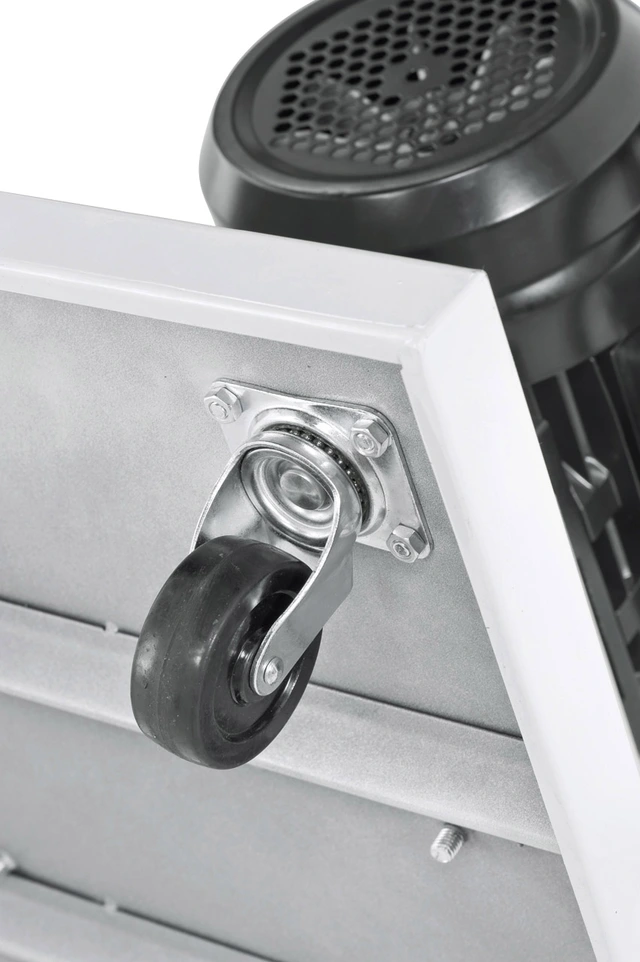

- Carriage
